Driveway Gate Roller for undermount application
Ultra Undermount Gate Roller - Image 2
Ultra Undermount Gate Roller - Image 3
Driveway Gate Roller for undermount application

Ultra Undermount Gate Roller

Ultra Slide Heavy Duty Undermount Gate Rollers are manufactured to carry a load of 500kg per pair, while maintaining an ultra-smooth slide with minimal rolling resistance.

Ultra Gate Rollers have been subjected to extensive testing at maximum load and are manufactured with the finest materials such as aluminium, stainless steel, nylon and sealed bearings to ensure longevity and corrosion resistance.

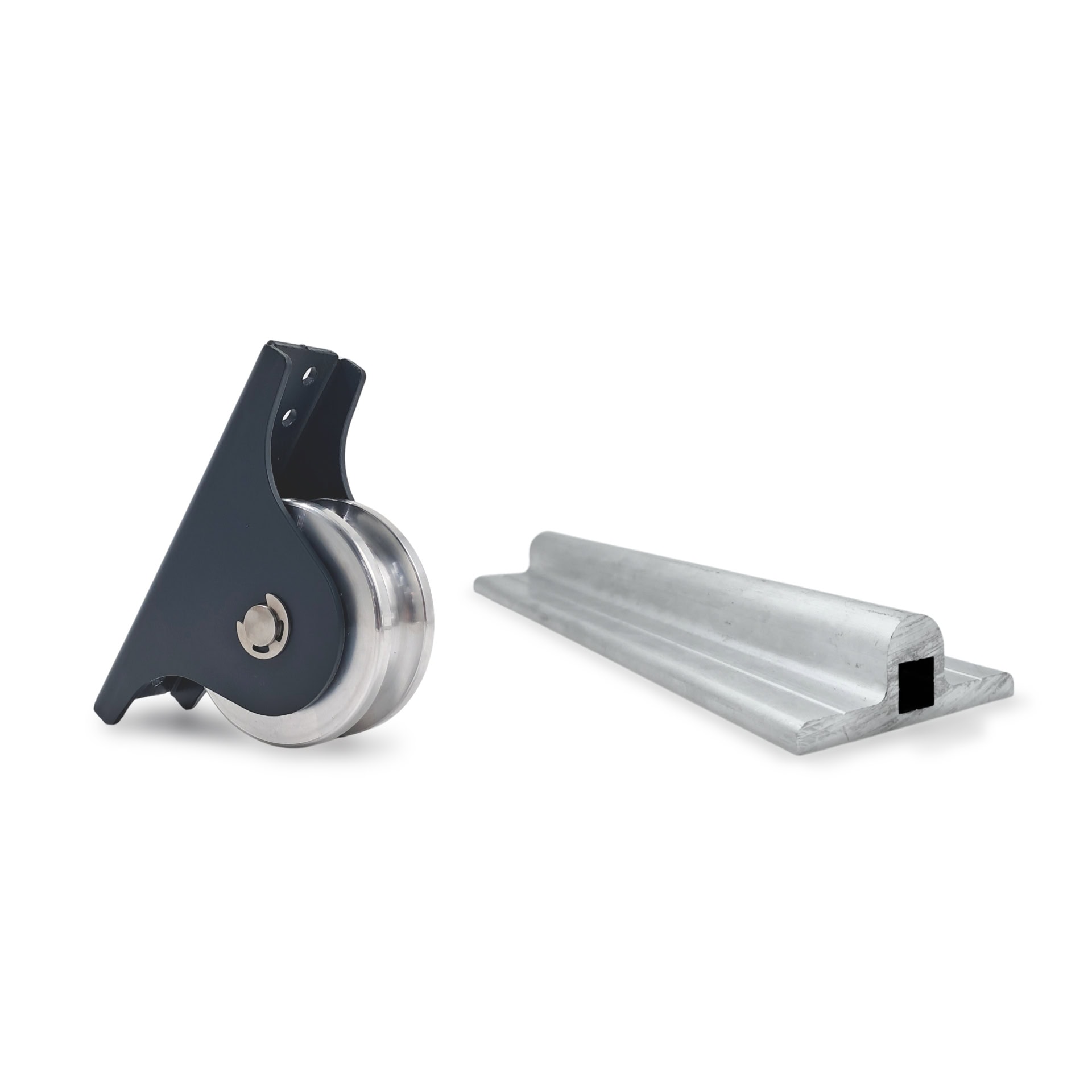

When coupled with our anodised, hardened alloy gate track, an ultra-smooth slide is achieved. They are ideally suited to applications where low rolling resistance and reduced stress on your gate motor is required.

Download Catalogue
Enquire About this Product

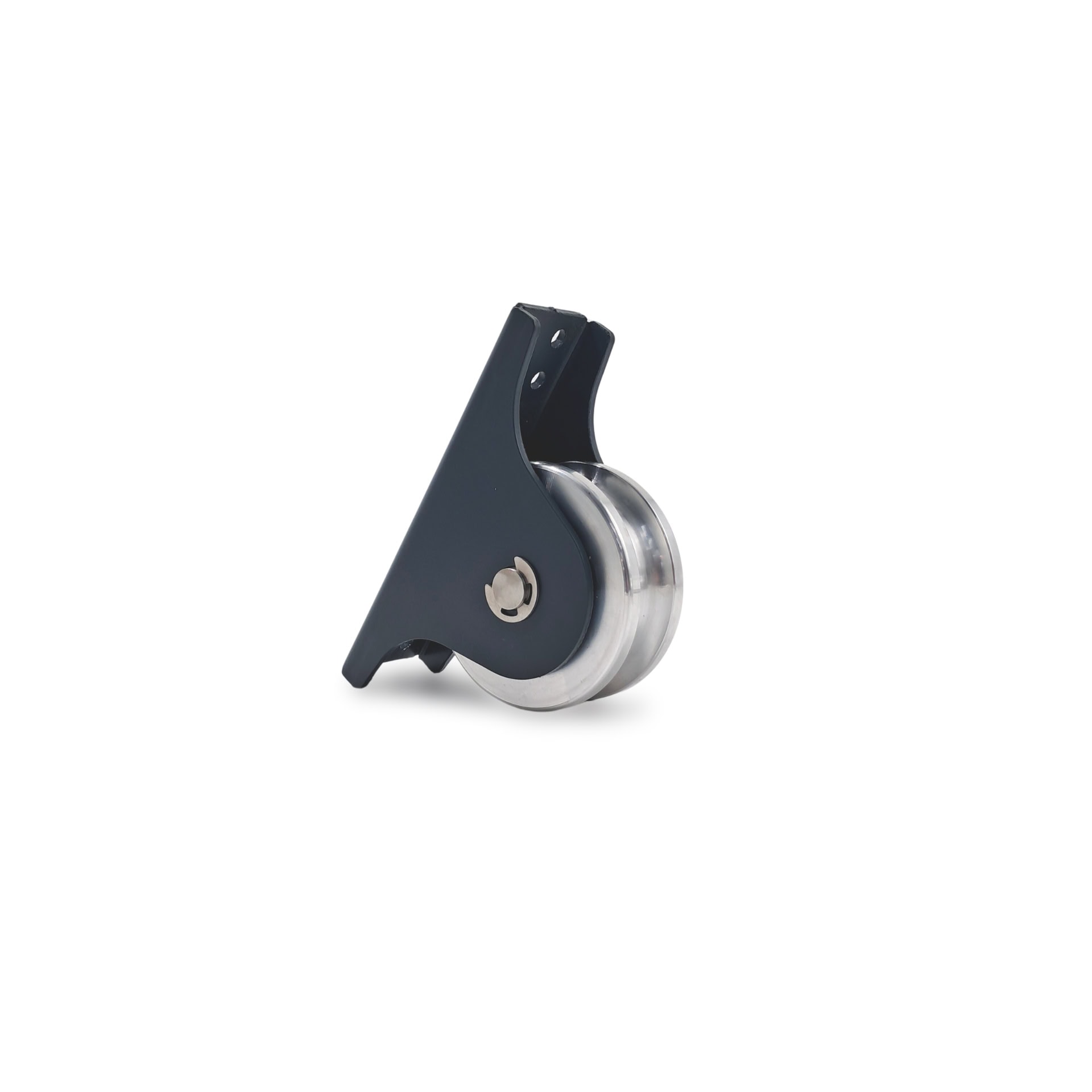

Ultra Slide Undermount Gate Rollers make use of a 6063T solid aluminium roller of 70mm diameter and two press fitted stainless steel sealed bearings. Each bearing is connected to the aluminium casing by a 12mm stainless steel shaft which is secured in position by two stainless steel E clips. The overall size of the roller is 130mm by 80mm and has 8 fixing points. When coupled with our track system the total height of roller on track is 100mm.

Ultra undermount heavy duty gate rollers are manufactured specifically for harsh coastal conditions.

A gate roller is the critical component in any sliding application. Avoid costly break downs, damage to your gate motor and system and premature wearing down of track & motor by using the Ultra Undermount Gate Roller.

Ultra Slide Undermount Heavy Duty Gate Rollers are stocked in three versions: full aluminium powder coated to choice, 304 stainless steel casing with aluminium roller, or mild steel with aluminium roller.

Technical drawings, dimensions and installation diagrams are available on request.

ADVANTAGES OF THE ULTRA UNDERMOUNT GATE ROLLER:
  • Fits to underside of gate with 8 self-drilling screws (no welding)
  • Manufactured to carry high loads
  • Two sealed bearings
  • Minimizes wear & tear to both roller and track
  • Provides an ultra-smooth, reliable slide
  • 8 Fixing points
  • Quality manufactured in South Africa
  • Competitively priced
