They are ideally suited to high use applications such as commercial settings, double glazing and large panel applications as well as coastal areas.
Ultra Slide 500 heavy duty rollers will not deform with age like nylon rollers.
Ultra Slide 500 Rollers make use of a 6063T solid aluminium roller of 70mm diameter and a press fitted stainless steel sealed bearing. The bearing is connected to an aluminium casing by a 12mm aluminium shaft which is secured in position by two M8 stainless steel machine screws. The overall size of the roller is 140mm by 80mm and it has 4 fixing points.
A door roller is the critical component in any sliding door. Avoid costly break downs, damage to your door system and frustratingly heavy slides, by using the Ultra Slide 500 Door Roller.

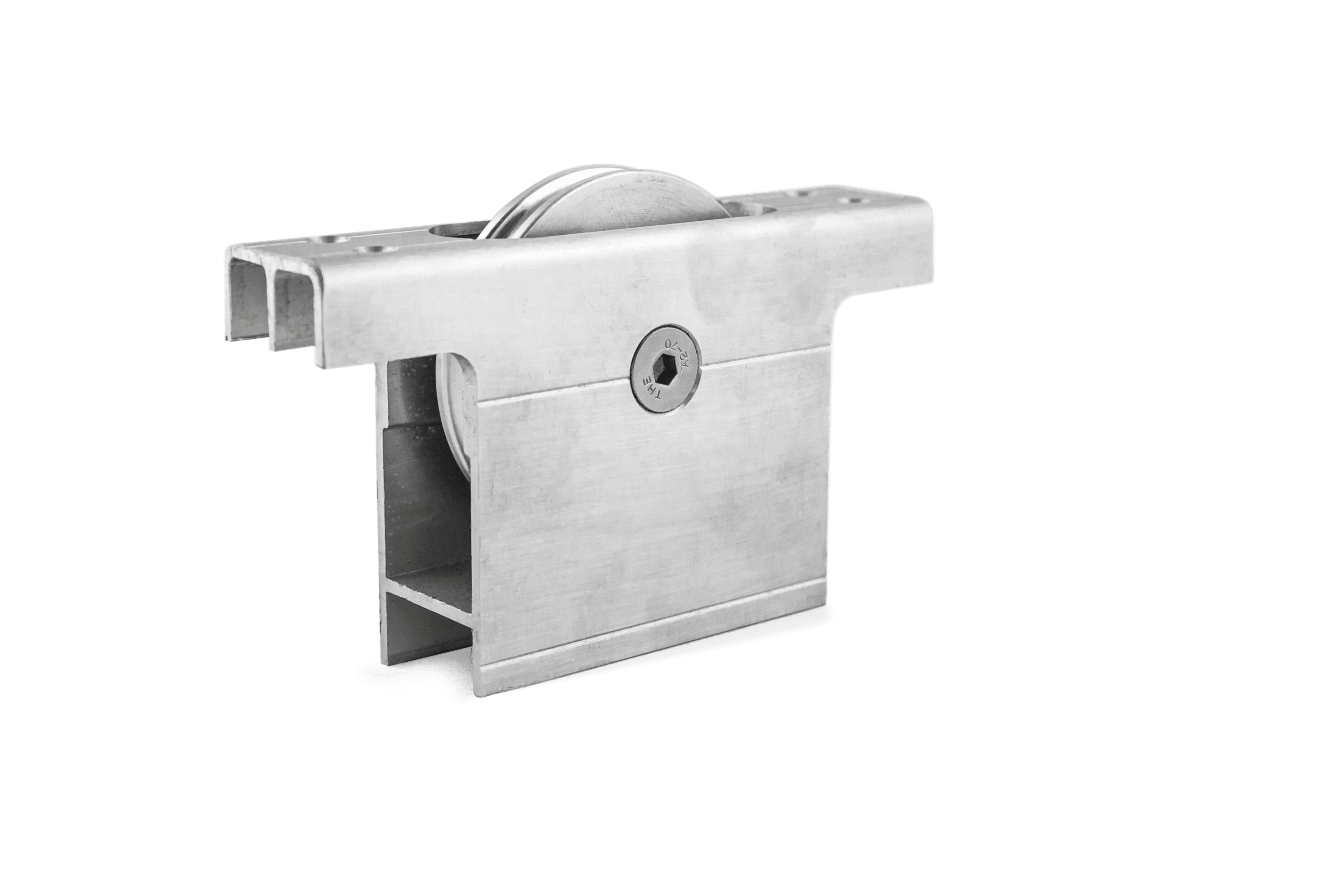

Ultra Slide 500 Heavy Duty Door Rollers are stocked in singles as per the photo attached but can be manufactured in a double or custom version on request.
Technical drawings, cut out dimensions and installation diagrams are available on request.
