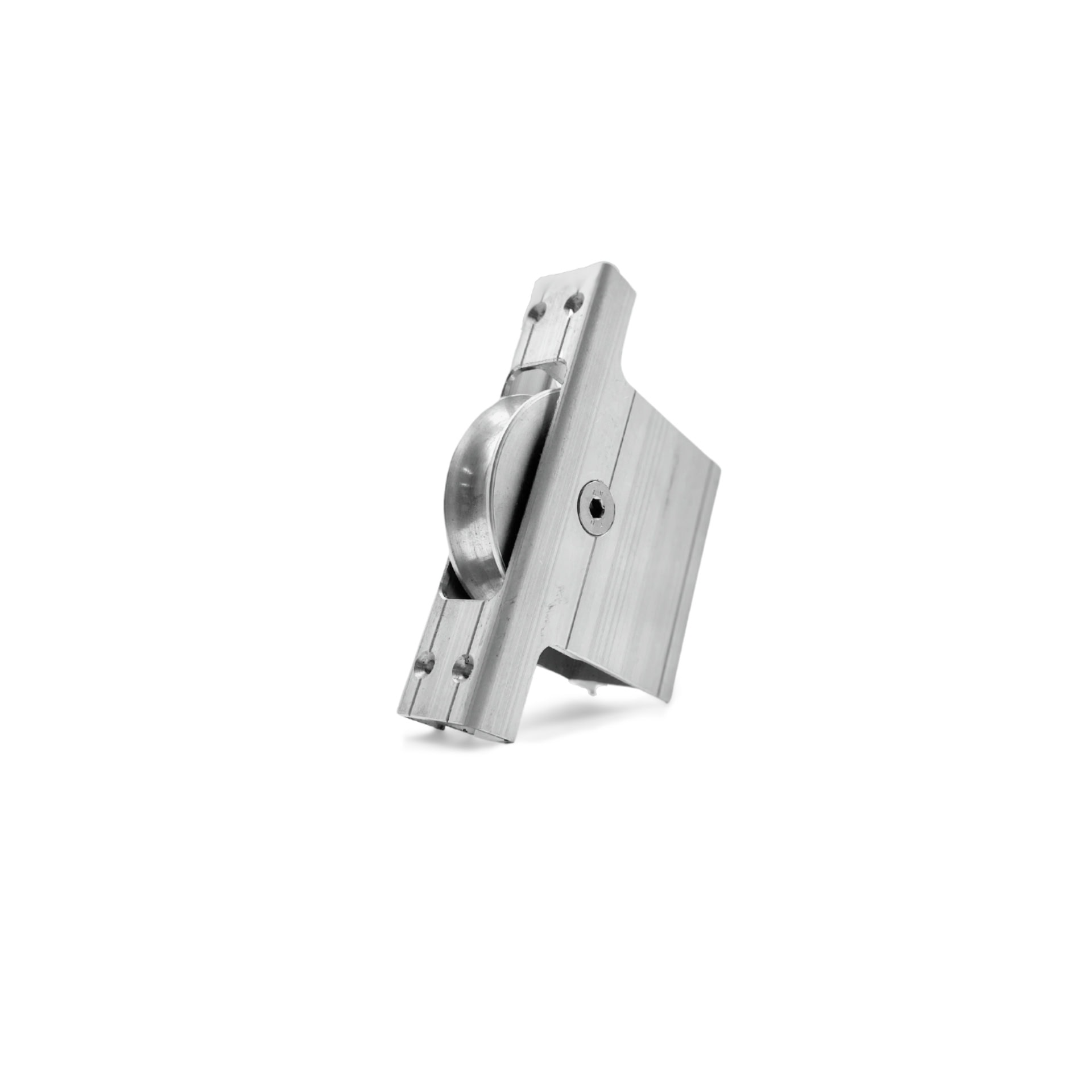

Ultra 500 Gate Roller
Ultra 500 Gate Roller - Image 2

Ultra 500 Gate Roller

Ultra 500 Heavy Duty Gate Rollers fit into R4 and R6 extrusions, and are manufactured to carry a load of 500kg per pair while maintaining an ultra-smooth slide with minimal rolling resistance. Ultra 500 Gate Rollers have been subjected to extensive testing at maximum load and are manufactured with the finest materials such as aluminium, stainless steel, nylon and sealed bearings to ensure longevity and corrosion resistance.

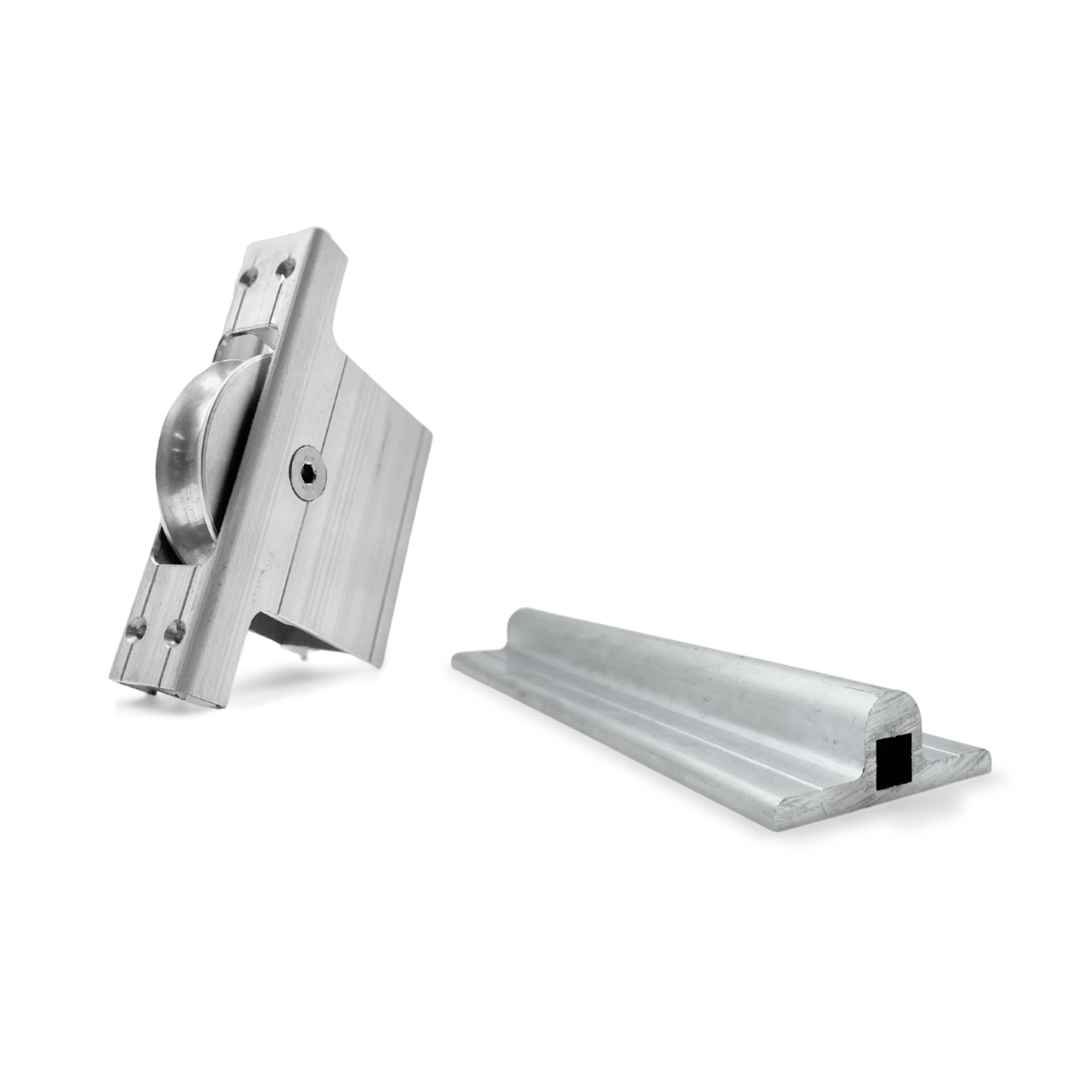

When coupled with our anodised, hardened alloy gate track, an ultra-smooth slide is achieved. They are ideally suited to applications where low rolling resistance and reduced stress on your gate motor is required.

Download Catalogue
Enquire About this Product

Ultra 500 Gate Rollers make use of a 6063T solid aluminium roller of 70mm diameter and two press fitted stainless steel sealed bearings. Each bearing is connected to the aluminium casing by a 12mm aluminium shaft which is secured in position by two M8 stainless steel machine screws. The overall size of the roller is 140mm x 80mm and it has 4 fixing points.

Ultra 500 heavy duty gate rollers are manufactured specifically for harsh coastal conditions.

A gate roller is the critical component in any sliding application. Avoid costly break downs, damage to your gate motor and system and premature wearing down of track and motor by using the Ultra Slide 500 Gate Roller.

Technical drawings, cut out dimensions and installation diagrams also available.
